Do you want to add / edit the ladder diagram on your Robodrill CNC Machine? you can add the engine accessories, such as conveyor coolant or coolant with automatic water filling. Below I provide the steps.
1. Press the emergency stop button.
2. Mode MDI set PWE = 1
3. Next SYSTEM >>> PMC PRM >> SETTING :
Set Write to F-ROM edit 0 to 1
Set RAM write enable 0 to 1
4. Back SYSTEM >>> PMC LAD >> choice CUSTOM to add / edit ladder due to GLOBAL can not we edit.

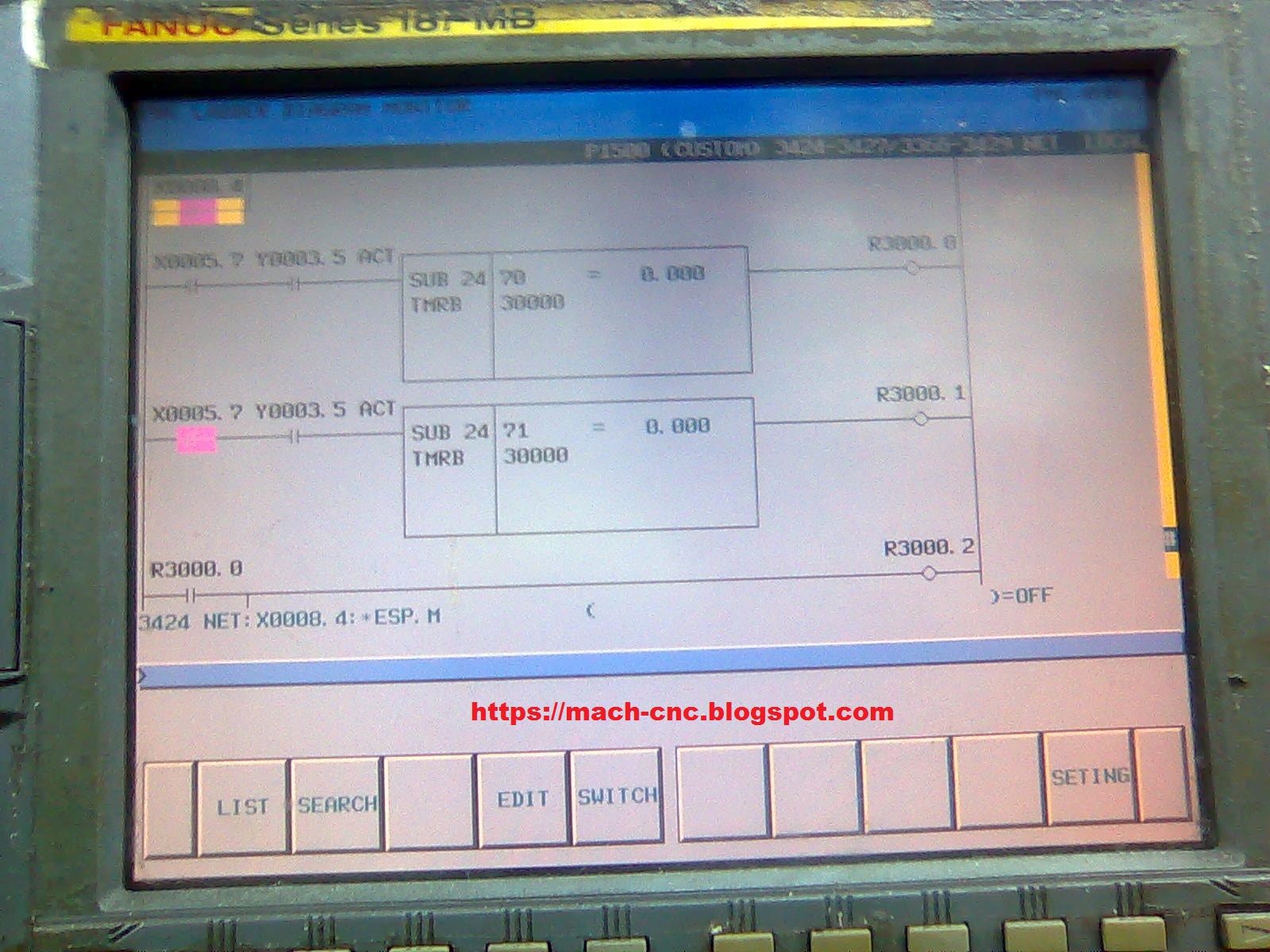

5. To start editing ladder diagrams CNC Vertical Machine Fanuc Robodrill press the EDIT soft key. In this menu you can modify to your liking ladder. If you want to create a new press CREATE
6. After you finish creating ladder diagrams do not forget to press the UPDATE and then pops up "are you sure running PMC You Want to update the program you select YES. Appears "UPDATE SUCCESED" then you press the left soft key, appears "Do you Want To write the program into the flash ROM?" Select YES. If you select NO when the machine on which you turn off the ladder diagram editing will be lost.
7. After you finish creating ladder diagrams do not forget to PWE you set to "0"
2. Mode MDI set PWE = 1
3. Next SYSTEM >>> PMC PRM >> SETTING :
Set Write to F-ROM edit 0 to 1
Set RAM write enable 0 to 1
4. Back SYSTEM >>> PMC LAD >> choice CUSTOM to add / edit ladder due to GLOBAL can not we edit.
6. After you finish creating ladder diagrams do not forget to press the UPDATE and then pops up "are you sure running PMC You Want to update the program you select YES. Appears "UPDATE SUCCESED" then you press the left soft key, appears "Do you Want To write the program into the flash ROM?" Select YES. If you select NO when the machine on which you turn off the ladder diagram editing will be lost.
7. After you finish creating ladder diagrams do not forget to PWE you set to "0"
